IPEX fire extinguisher non-pressurised powder dispensers
The range of modules of the Green Safety non-pressurised powder fire protection system, combined with the different weight of the extinguishing powder they contain, allows them to be used in different types of environments and cubic volumes.
Green Safety's Ipex powder fire extinguishers are non-pressurised and certified in accordance with ISO 15779:2011, UL2127 and NFPA 2010. The diffusion time of the extinguishing powder is unquestionably faster than in competing dispensers. They can be installed in: warehouses, industrial warehouses, large deposits of combustible material, technical rooms, HV/MV – MV/LV power oil transformers, cable ducts and in the engine compartment of vehicles (automotive).

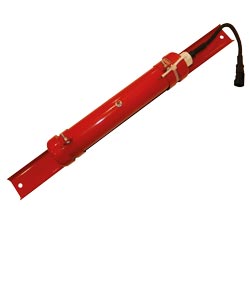

IPEX 0.3 Impulsive dry powder fire extinguisher generator
Weight: 0,75 kgExtinguishing mass: 0,3 kg
Diameter of the dispenser: 55 mm
Length of the dispenser: 280 mm
Protected volume: 1,2 m3
Protected area: 1,0 m2
Activation: elettrica
Activation current: 0,7 A
Operating temperature: -50 °C…+50 °C
Automotive version: -50 °C...+100 °C
Life time: 10 anni

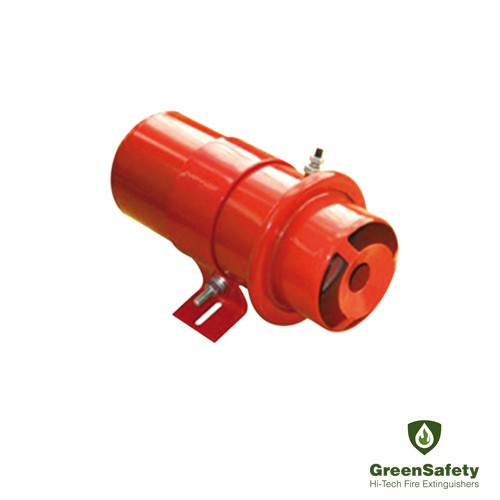

IPEX 0.5 Impulsive dry powder fire extinguisher generator
Weight: 2,90 kgExtinguishing mass: 1,95 kg
Diameter of the dispenser: 250 mm
Length of the dispenser: 140 mm
Protected volume: 2 m3
Protected area: 2 m2
Activation: electric
Activation current: 0,7 A
Operating temperature: -50°C…+50°C
Automotive version: -50°C...+100°C
Life time: 10 anni

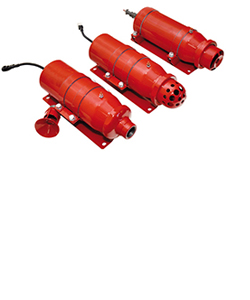

IPEX 2.0 Impulsive dry powder fire extinguisher generator
Weight: 4,70 kgExtinguishing mass: 1,65 kg
Diameter of the dispenser: 145 mm
Length of the dispenser: 440 mm
Protected volume: 15 m3
Protected area: 10,0 m2
Activation: electric
Activation current: 0,7 A
Operating temperature: -50 °C…+50 °C
Automotive version: -50 °C...+100 °C
Life time: 10 anni
IPEX 2.5 Impulsive dry powder fire extinguisher generator
Weight: 2,90 kgExtinguishing mass: 1,95 kg
Diameter of the dispenser: 250 mm
Length of the dispenser: 140 mm
Protected volume: 18 m3
Protected area: 7,0 m2
Activation: electric
Activation current: 0,7 A
Operating temperature: -50 °C…+50 °C
Automotive version: -50 °C...+100 °C
Life time: 10 anni

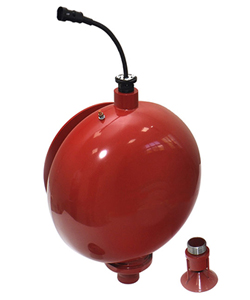

IPEX 7 Impulsive dry powder fire extinguisher generator
Weight: 14,50 kgExtinguishing mass: 7,50 kg
Diameter of the dispenser: 300 mm
Length of the dispenser: 250 mm
Protected volume: 42 m3
Protected area: 20,0 m2
Activation: electric
Activation current: 0,7 A
Operating temperature: -50…+50 °C
Automotive version: -50 °C...+100 °C
Life time: 10 years

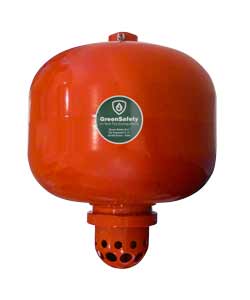

IPEX 8 Impulsive dry powder fire extinguisher generator
Weight: 12,00 kgExtinguishing mass: 7,00 kg
Diameter of the dispenser: 250 mm
Length of the dispenser: 350 mm
Protected volume: 64 m3
Protected area: 32,0 m2
Activation: electric
Activation current: 0,7 A
Operating temperature: -50…+50 °C
Automotive version: -50 °C...+100 °C
Life time: 10 years

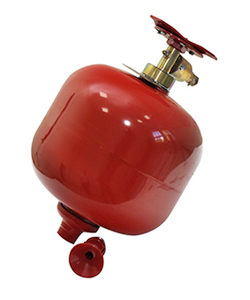

IPEX 15 Impulsive dry powder fire extinguisher generator
Weight: 24,50 kgExtinguishing mass: 14,50 kg
Diameter of the dispenser: 300 mm
Length of the dispenser: 500 mm
Protected volume: 96 m3
Protected area: 48,0 m2
Activation: electric
Activation current: 0,7 A
Operating temperature: -50…+50 °C
Automotive version: -50 °C...+100 °C
life time: 10 anni

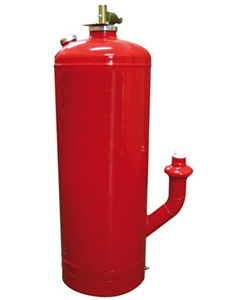

IPEX 50R-T Impulsive dry powder fire extinguisher generator
Weight: 75 kgExtinguishing mass: 48 kg
Diameter of the dispenser: 300 mm
Length of the dispenser: 860 mm
Protected volume: 60 m3
Protected area: 180 m2
Activation: electric
Activation current: 0,7A
Operating temperature: -50°C …+50°C
Life time: 10 years
